DATAZONE TrueNAS Configurator —
every model, one interface.
From the Mini up to the F100 — configure disks, RAID, network and expansion shelves live. See usable capacity instantly, get a shareable configuration code, and request a quote in one click.
Six series — from SOHO to hyperscale
Each TrueNAS series has a clear sweet spot. If you are not sure which one fits your workload, describe your use case in the configurator — we will suggest matching models.

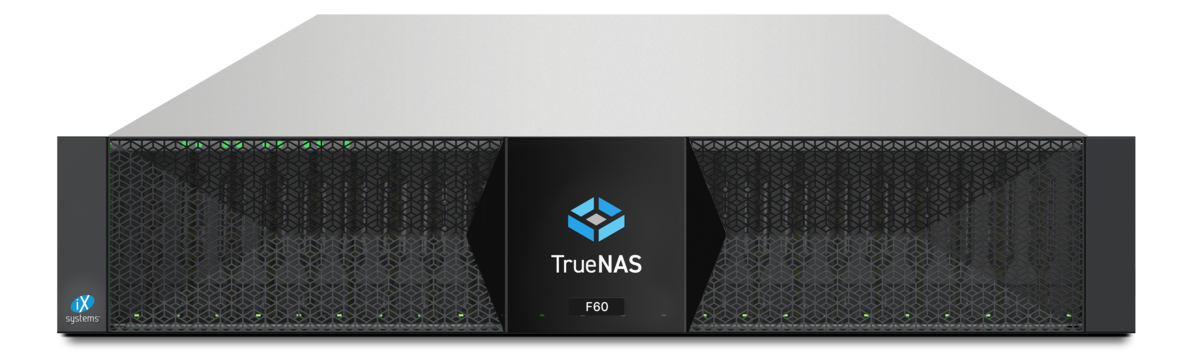

F-Series
2 modelsHigh-performance NVMe storage
All-flash NVMe in 2U with optional HA. Up to 8× 100 GbE and 20 PB. For AI/ML, databases and video production.

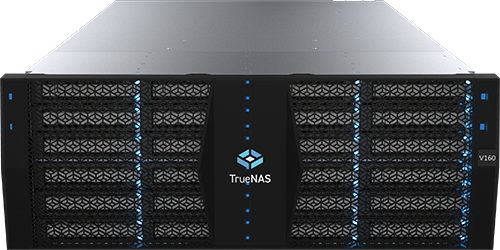

V-Series
2 models / 3 configurationsTri-mode HA storage
Versatile 4U platform with tri-mode bays (SAS HDD + NVMe Gen4). Four additional NVMe Gen5 bays as high-speed cache. Up to 400 GbE and 35 PB.

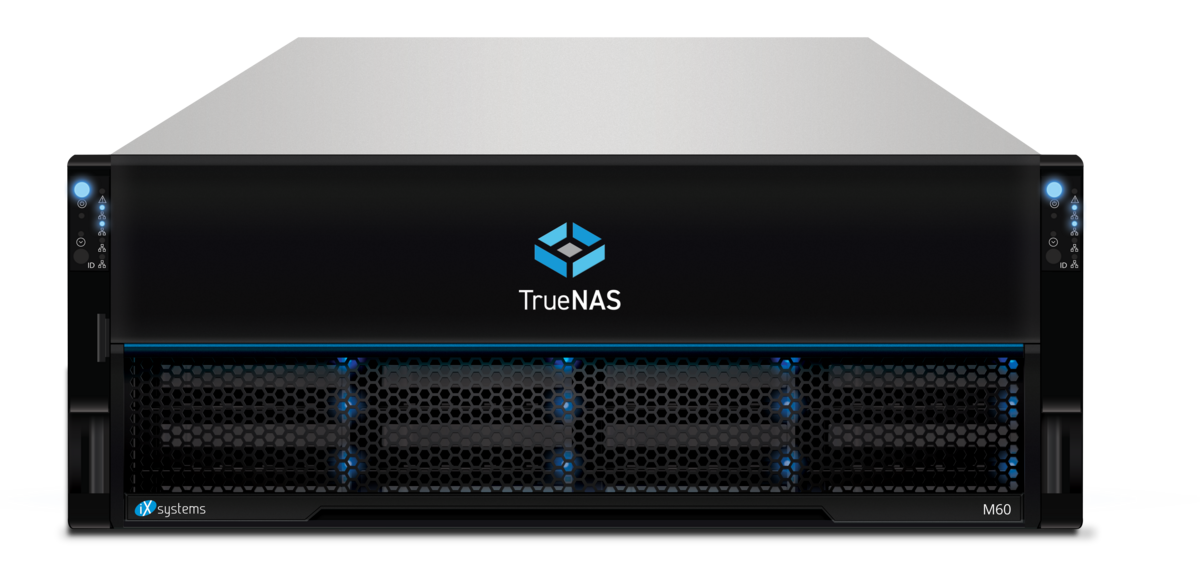

M-Series
2 modelsPowerful, scalable enterprise storage
4U mainstream enterprise with optional HA and TrueCache® NVDIMM from the M40 up. Two models scaling from 1.5 PB to 6 PB.

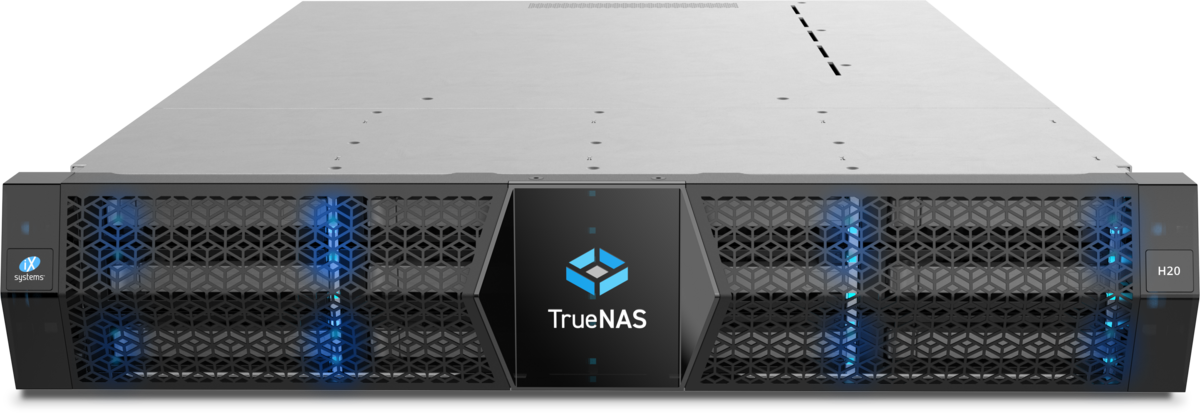

H-Series
3 modelsVersatile hybrid storage
Entry-level enterprise in 2U with optional HA. NVMe-capable in every bay. Three models for SMB and edge deployments.

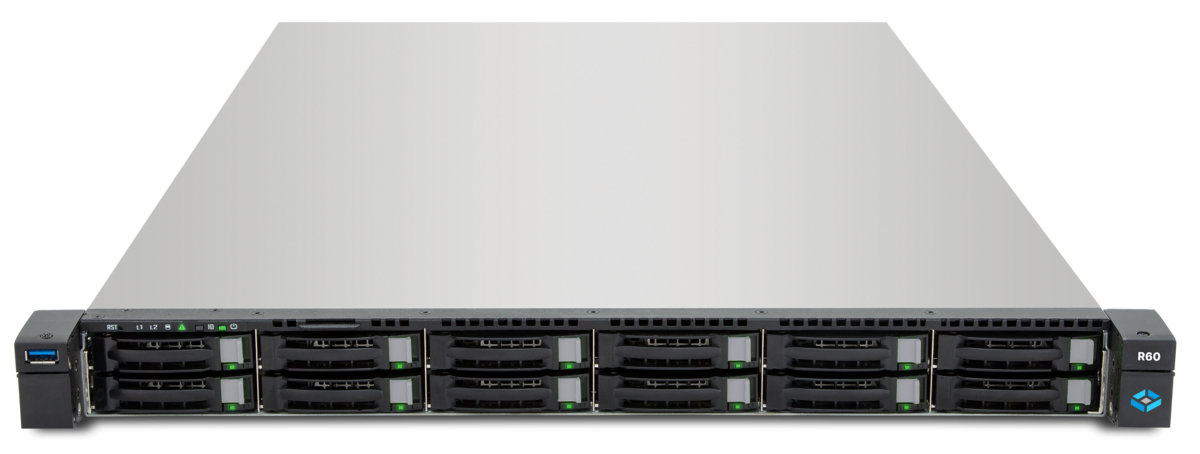

R-Series
3 modelsPowerful single-controller storage
Single-controller high-density. R20/R50 as hybrid, R60 as all-flash NVMe with DDR5 and 400 GbE — no HA premium.

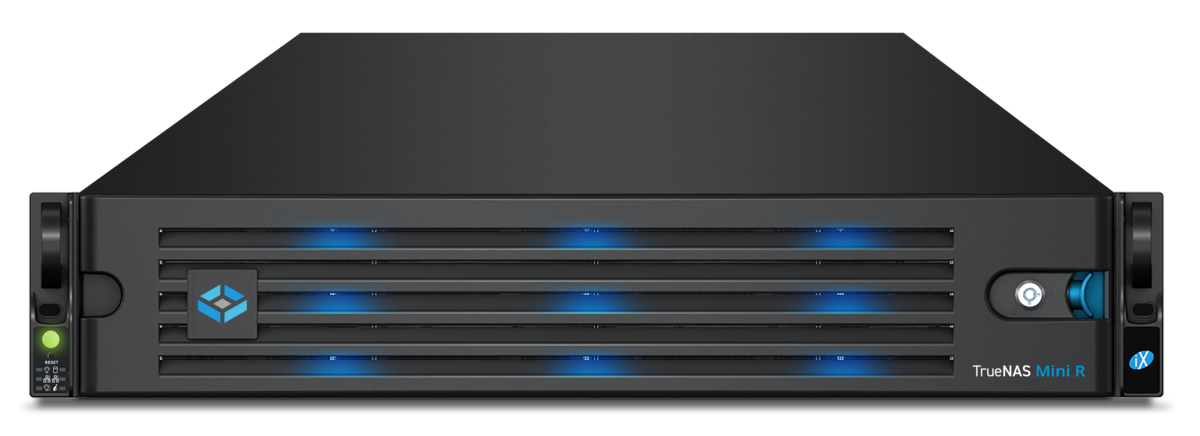

Mini
2 modelsSOHO and SMB storage
Compact tower and rackmount NAS for home, small offices and edge sites. Note: Mini models ship with hardware warranty only, no TrueNAS enterprise support.
Configure without leafing through data sheets
Live validation
Impossible combinations (e.g. RAID-Z3 with too few disks or HA on a single-controller model) are flagged immediately.
Real-time capacity
Raw and usable capacity (after RAID + ZFS overhead) — instantly visible.
Bay visualisation
SVG front view shows occupied and free bays, colour-coded for data / redundancy / hot-spare.
Shareable code
Every configuration produces a readable code such as TN-M40-HA-192G-… plus a URL hash for re-loading.
Workload guide
Describe your use case (backup, VMs, AI training, …) — we suggest matching models.
Up-to-date iX data
Models, disk options and expansion shelves based on the official iX data sheets (2026).
Configure your system now
Start with a specific model or let your workload guide you to the right one. No registration, no commitment.
